Tangential rhombic LNHX120604R-L65T WSP45GTangential rhombic LNHX120604R-L65T WSP45G
Tangential rhombic LNHX120604R-L65T WSP45G Tangential rhombic LNHX120604R-L65T WSP45G

Tangential rhombic LNHX120604R-L65T WSP45G

€
24.56
EX VAT
€
30.21
INC VAT
Walter
Tangential rhombic LNHX120604R-L65T WSP45G
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

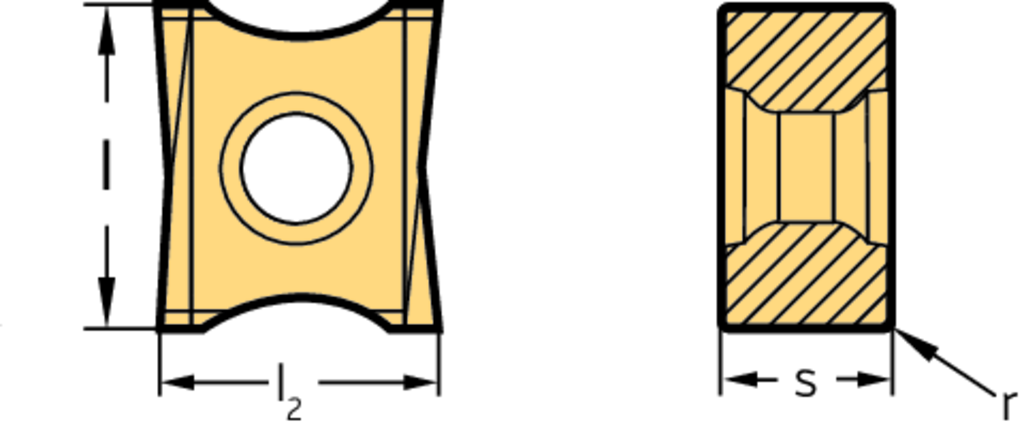

Tool designation (Designation) LNHX120604R-L65T WSP45G
Indexable insert tolerance class (Tolerance class) H
Number of cutting edges (Number of cutting edges) 4
Indexable insert width (l 2) 11 mm
Cutting edge length (l) 12,7 mm
Insert thickness (s) 6,8 mm
Corner radius (r) 0,4 mm
Insert Shape LN
DESCRIPTION & FEATURES

Tangential rhombic LNHX ...-L65T • clearance angle major=0° • WSP45G • Tigertec Gold • Corner radius=0,4mm • wiper edge length=1,5mm

Article number (J21):
LNHX120604R-L65T WSP45G
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-76
Tool style code (BLD):
4
Insert included angle (A1):
90 °
Clearance angle major (A2):
0 °
Cutting edge length (B1):
12,7 mm
Insert width (B2):
11 mm
Inscribed circle diameter (B3):
0 mm
Insert thickness (C1):
6,8 mm
Corner radius (D1):
0,4 mm
Wiper edge length (D6):
1,5 mm
Weight of item (D75):
0,008 kg
Cutting edge condition code (E41):
E
Chip breaker manufacturers designation (E9):
L65T
Insert hand (F1):
R
Insert index count (F2):
2
Tolerance class insert (G1):
H
Insert length (G3):
12,7 mm
Insert thickness total (G4):
6,8 mm
Insert mounting style code (G5):
3
Fixing hole diameter (G6):
3,4 mm
Coolant supply property (H2):
0
Grade manufacturer's designation (H3):
WSP45G
Coating (H5):
TiAlN+Al2O3+(ZrN)
Tipped cutting edge code (H6):
S
Standard designation (J11):
LNHX120604R
