Turning tools – Copy turning system W1011-C...-P W1011-C5R-WL25-PTurning tools – Copy turning system W1011-C...-P W1011-C5R-WL25-P
Turning tools – Copy turning system W1011-C...-P W1011-C5R-WL25-P Turning tools – Copy turning system W1011-C...-P W1011-C5R-WL25-P

Turning tools – Copy turning system W1011-C...-P W1011-C5R-WL25-P

€
411.00
EX VAT
€
505.53
INC VAT
Walter
Turning tools – Copy turning system W1011-C...-P W1011-C5R-WL25-P
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

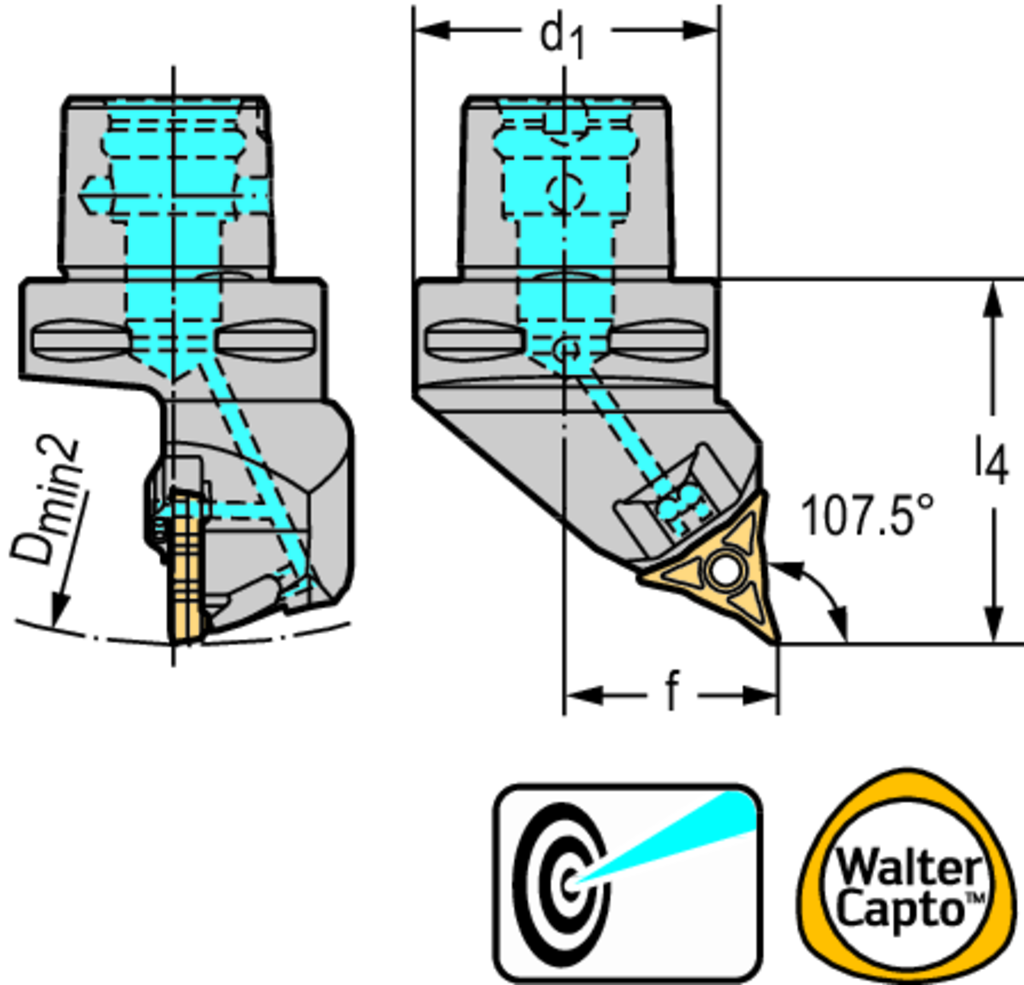

Tool designation (Designation) W1011-C5R-WL25-P
Connection size code (d 1) C5
Functional width (f) 35 mm
Functional length (l 4) 60 mm
Minimum diameter (D min) 200 mm
Minimum hole diameter (D min2) 200 mm
Orthogonal rake angle (γ) 0 Deg
Inclination angle (λ s) 0 Deg
Insert Shape W1
DESCRIPTION & FEATURES
Turning tools – Copy turning system W1011-C...-P • Walter Turn • metric • Walter CaptoTM ISO 26623 • κ=107,5° • Right • C5 • specific profile insert • WL .. 2504 ..
Article number (J21):
W1011-C5R-WL25-P
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-90
Tool style code (BLD):
8
Cutting edge length (A1):
25 mm
Functional width (A2):
35 mm
Functional length (A3):
60 mm
Functional height (A4):
0 mm
Protruding length (B3):
90 mm
Overall length (B5):
90 mm
Connection code type machine side (C11):
CCS
Connection code form at machine side (C12):
01
Connection code unit base machine side (C14):
9
Connection code style machine side (C15):
5
Connection size code machine side (C2):
0500
Weight of item (D7):
0,63 kg
Tool cutting edge angle (E1):
127,5 °
Insert included angle (E3):
35 °
Rake angle orthogonal (E4):
0 °
Inclination angle (E5):
0 °
Cutting direction (F1):
Right
Tool holder shape code (F2):
G
Clamping type code (F5):
S
Coolant entry style code (H21):
1
Coolant exit style code (H22):
7
Standard (J1):
ISO26623-1
Master insert identification (J42):
WL25 VC 07 08
Data chip provision (J7):
0
Insert Type:
WL .. 2504 ..
