Turning tools – Lever clamping C... C5-PVJBR-35060-16Turning tools – Lever clamping C... C5-PVJBR-35060-16
Turning tools – Lever clamping C... C5-PVJBR-35060-16 Turning tools – Lever clamping C... C5-PVJBR-35060-16

Turning tools – Lever clamping C... C5-PVJBR-35060-16

€
291.00
EX VAT
€
357.93
INC VAT
Walter
Turning tools – Lever clamping C... C5-PVJBR-35060-16
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

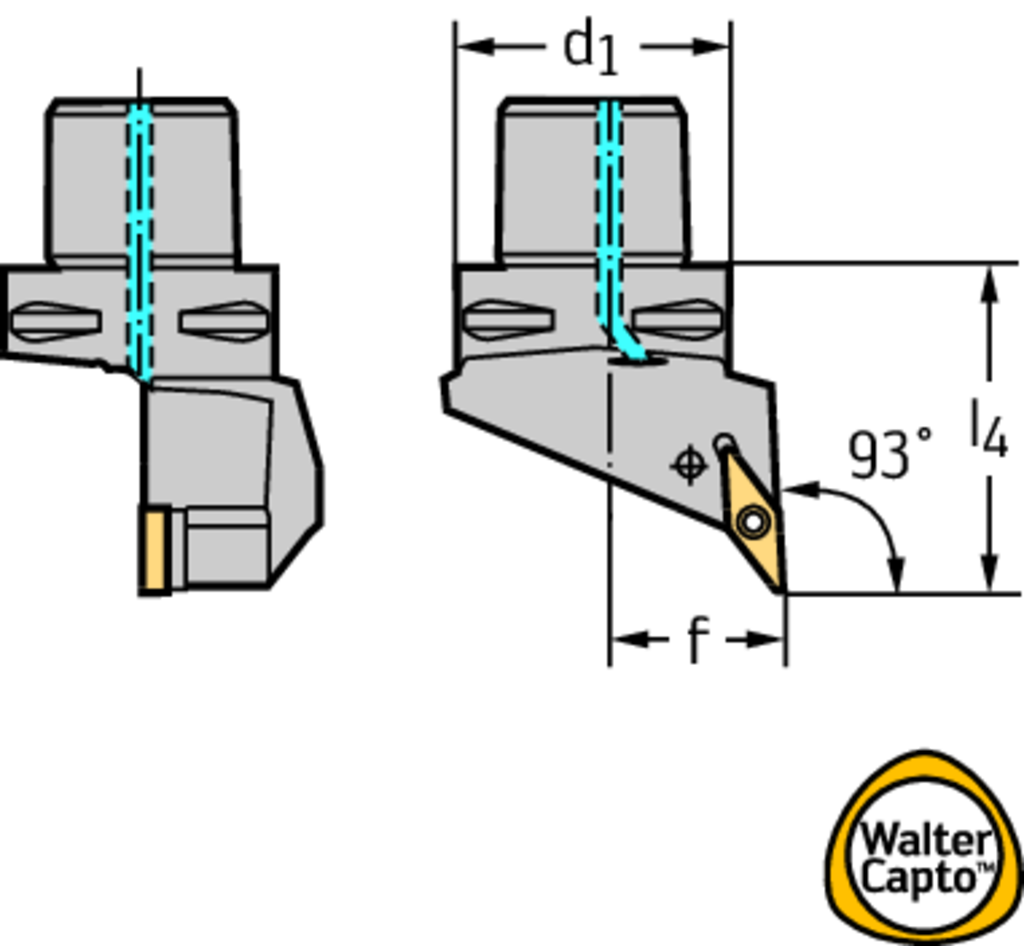

Tool designation (Designation) C5-PVJBR-35060-16
Connection size code (d 1) C5
Functional width (f) 35 mm
functional length (l 4) 60 mm
Orthogonal rake angle (γ) 0 Deg
Inclination angle (λ s) 0 Deg
Insert Shape C.
DESCRIPTION & FEATURES
Turning tools – Lever clamping C...-PVJB • Walter Turn • metric • Walter CaptoTM ISO 26623 • κ=93° • Right • C5 • rhombic insert • VB .. 1604 ..
Article number (J21):
C5-PVJBR-35060-16
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-90
Tool style code (BLD):
8
Cutting edge length (A1):
16,5 mm
Functional width (A2):
35 mm
Functional length (A3):
60 mm
Functional height (A4):
0 mm
Protruding length (B3):
90 mm
Overall length (B5):
90 mm
Connection code type machine side (C11):
CCS
Connection code form at machine side (C12):
01
Connection code unit base machine side (C14):
9
Connection code style machine side (C15):
5
Connection size code machine side (C2):
0500
Weight of item (D7):
0,702 kg
Tool cutting edge angle (E1):
93 °
Tool cutting edge angle type code (E2):
S
Insert included angle (E3):
35 °
Rake angle orthogonal (E4):
0 °
Inclination angle (E5):
0 °
Cutting direction (F1):
Right
Clamping type code (F5):
P
Coolant entry style code (H21):
1
Coolant exit style code (H22):
6
Standard (J1):
ISO26623-1
Master insert identification (J42):
VBMT 16 04 08
Data chip provision (J7):
0
Insert Type:
VB .. 1604 ..
