Turning tools – Lever clamping C... C6-PSKNR-45065-15Turning tools – Lever clamping C... C6-PSKNR-45065-15
Turning tools – Lever clamping C... C6-PSKNR-45065-15 Turning tools – Lever clamping C... C6-PSKNR-45065-15

Turning tools – Lever clamping C... C6-PSKNR-45065-15

€
290.00
EX VAT
€
356.70
INC VAT
Walter
Turning tools – Lever clamping C... C6-PSKNR-45065-15
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

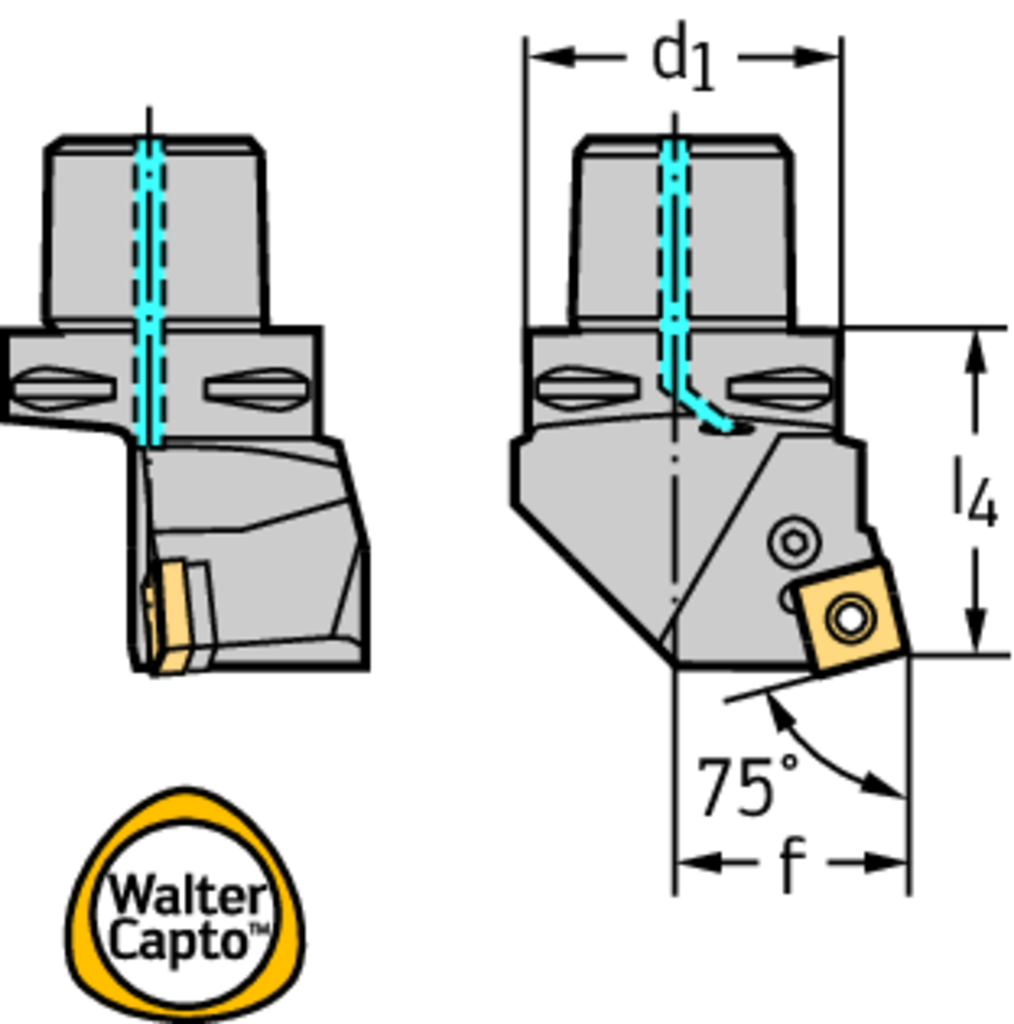

Tool designation (Designation) C6-PSKNR-45065-15
Connection size code (d 1) C6
Functional width (f) 45 mm
Functional length (l 4) 65 mm
Minimum diameter (D min) 81 mm
Minimum hole diameter (D min2) 190 mm
Orthogonal rake angle (γ) -6 Deg
Inclination angle (λ s) -6 Deg
Insert Shape C.
DESCRIPTION & FEATURES
Turning tools – Lever clamping C...-PSKN • Walter Turn • metric • Walter CaptoTM ISO 26623 • Right • C6 • square insert • SN .. 1506 ..
Article number (J21):
C6-PSKNR-45065-15
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-90
Tool style code (BLD):
8
Cutting edge length (A1):
15,8 mm
Functional width (A2):
45 mm
Functional length (A3):
65 mm
Functional height (A4):
0 mm
A dimension on lf (A52):
3,8 mm
Protruding length (B3):
106,8 mm
Overall length (B5):
106,8 mm
Connection code type machine side (C11):
CCS
Connection code form at machine side (C12):
01
Connection code unit base machine side (C14):
9
Connection code style machine side (C15):
5
Connection size code machine side (C2):
0630
Weight of item (D7):
1,36 kg
Tool cutting edge angle (E1):
75 °
Tool cutting edge angle type code (E2):
E
Insert included angle (E3):
90 °
Rake angle orthogonal (E4):
-6 °
Inclination angle (E5):
-6 °
Cutting direction (F1):
Right
Clamping type code (F5):
P
Coolant entry style code (H21):
1
Coolant exit style code (H22):
6
Standard (J1):
ISO26623-1
Master insert identification (J42):
SNMG 15 06 12
Data chip provision (J7):
0
Insert Type:
SN .. 1506 ..
