Turning tools – Rigid clamping C...-DDJN...-P C4-DDJNL-27055-11-PTurning tools – Rigid clamping C...-DDJN...-P C4-DDJNL-27055-11-P
Turning tools – Rigid clamping C...-DDJN...-P C4-DDJNL-27055-11-P Turning tools – Rigid clamping C...-DDJN...-P C4-DDJNL-27055-11-P

Turning tools – Rigid clamping C...-DDJN...-P C4-DDJNL-27055-11-P

€
370.00
EX VAT
€
455.10
INC VAT
Walter
Turning tools – Rigid clamping C...-DDJN...-P C4-DDJNL-27055-11-P
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

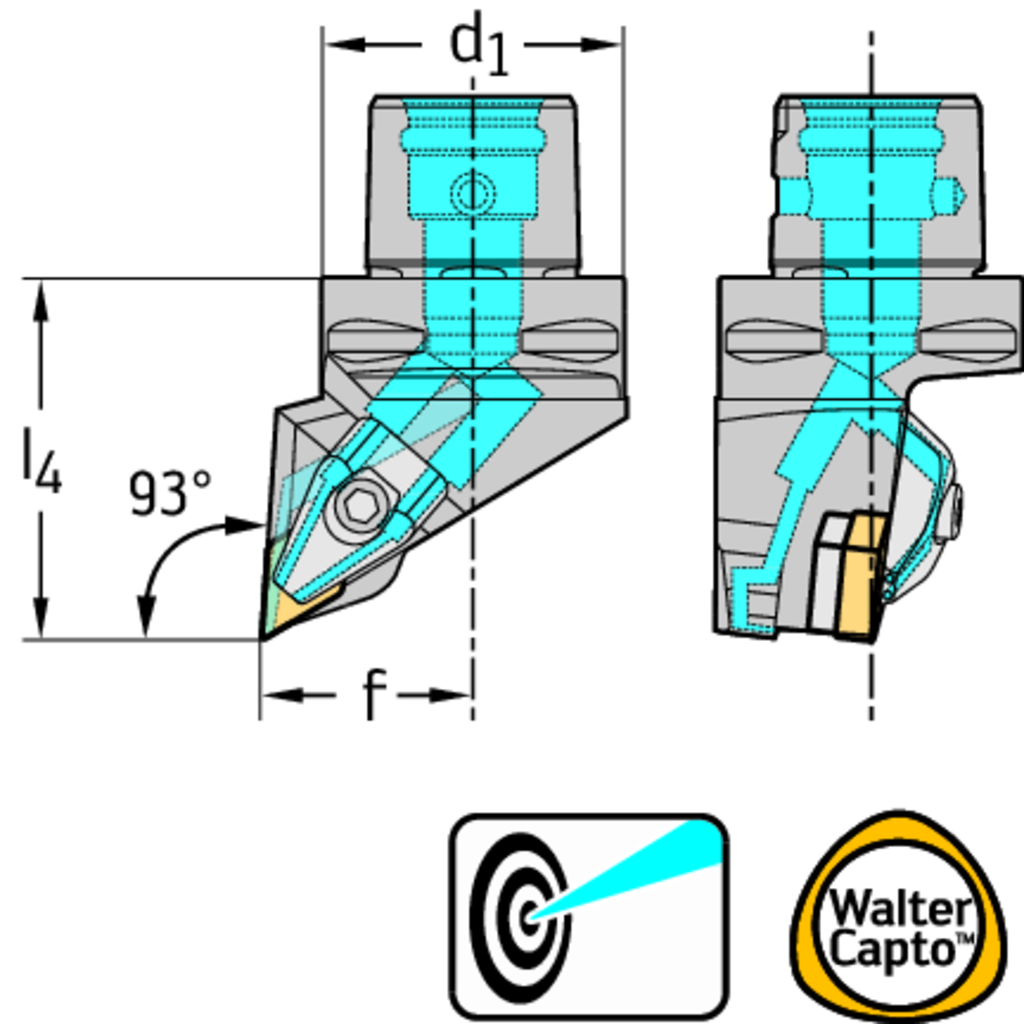

Tool designation (Designation) C4-DDJNL-27055-11-P
Connection size code (d 1) C4
Functional width (f) 27 mm
Functional length (l 4) 55 mm
Minimum diameter (D min) 500 mm
Minimum hole diameter (D min2) 500 mm
Orthogonal rake angle (γ) -6 Deg
Inclination angle (λ s) -7 Deg
DESCRIPTION & FEATURES
Turning tools – Rigid clamping C...-DDJN...-P • Walter Turn • metric • Walter CaptoTM ISO 26623 • κ=93° • Left • C4 • rhombic insert • DN .. 1104 ..
Article number (J21):
C4-DDJNL-27055-11-P
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-90
Tool style code (BLD):
8
Cutting edge length (A1):
11,6 mm
Functional width (A2):
27 mm
Functional length (A3):
55 mm
Functional height (A4):
0 mm
Protruding length (B3):
74 mm
Overall length (B5):
74 mm
Connection code type machine side (C11):
CCS
Connection code form at machine side (C12):
01
Connection code unit base machine side (C14):
9
Connection code style machine side (C15):
5
Connection size code machine side (C2):
0400
Weight of item (D7):
0,447 kg
Tool cutting edge angle (E1):
93 °
Tool cutting edge angle type code (E2):
S
Insert included angle (E3):
55 °
Rake angle orthogonal (E4):
-6 °
Inclination angle (E5):
-7 °
Cutting direction (F1):
Left
Clamping type code (F5):
D
Coolant entry style code (H21):
1
Coolant exit style code (H22):
7
Standard (J1):
ISO26623-1
Master insert identification (J42):
DNMG 11 04 08
Data chip provision (J7):
0
Insert Type:
DN .. 1104 ..
