Turning tools – Rigid clamping C... C4-DSSNR-27045-15

Turning tools – Rigid clamping C... C4-DSSNR-27045-15

€

227.00

EX VAT

€

279.21

INC VAT

Walter

Turning tools – Rigid clamping C... C4-DSSNR-27045-15

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

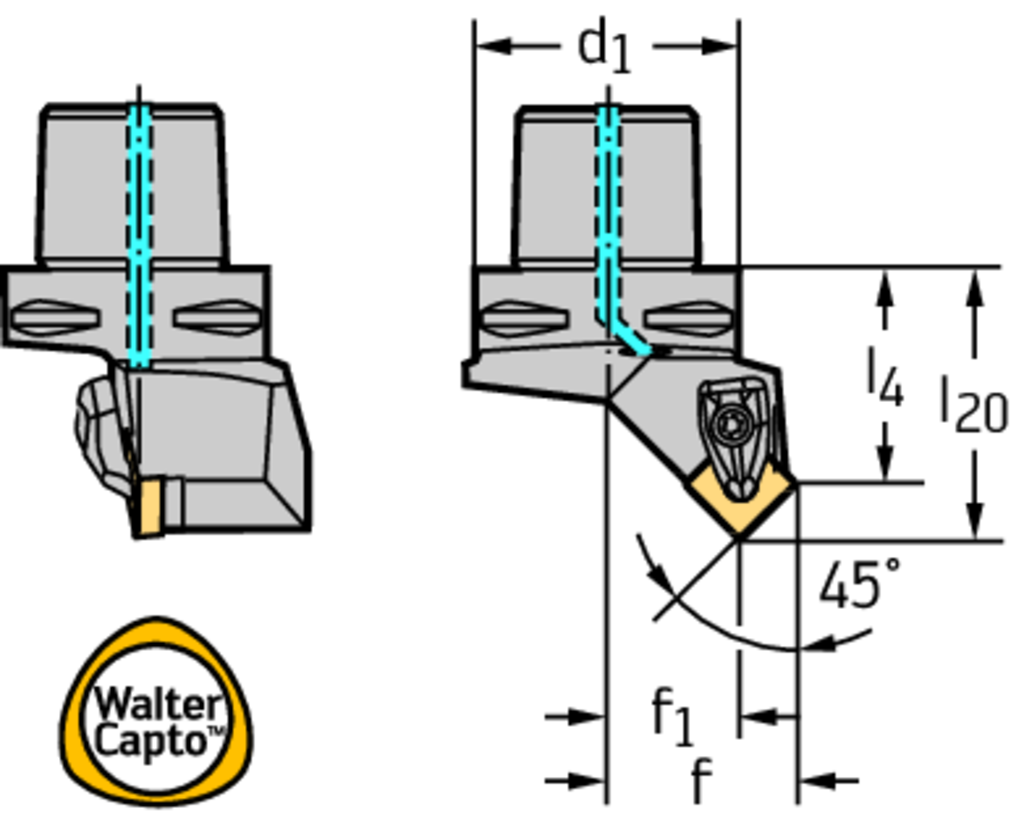

PRODUCT ATTRIBUTES

Tool designation (Designation) C4-DSSNR-27045-15

Connection size code (d 1) C4

Functional width (f) 27 mm

Functional width (f 1) 16,8 mm

Functional length (l 4) 45 mm

Functional length (l 20) 55,2 mm

Minimum hole diameter (D min) 125 mm

Minimum hole diameter (D min2) 145 mm

Orthogonal rake angle (γ) -8 Deg

Inclination angle (λ s) 0 Deg

Insert Shape C.

DESCRIPTION & FEATURES

Turning tools – Rigid clamping C...-DSSN • Walter Turn • metric • Walter Capto^TM ISO 26623 • κ=45° • Right • C4 • square insert • SN .. 1506 ..

Article number (J21):

C4-DSSNR-27045-15

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-90

Tool style code (BLD):

Cutting edge length (A1):

15,8 mm

Functional width (A2):

27 mm

Functional length (A3):

55,24 mm

Functional height (A4):

0 mm

A dimension on wf (A51):

10,24 mm

Protruding length (B3):

79,24 mm

Overall length (B5):

79,24 mm

Connection code type machine side (C11):

CCS

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0400

Weight of item (D7):

0,426 kg

Tool cutting edge angle (E1):

45 °

Tool cutting edge angle type code (E2):

Insert included angle (E3):

90 °

Rake angle orthogonal (E4):

-8 °

Inclination angle (E5):

0 °

Cutting direction (F1):

Right

Clamping type code (F5):

Coolant entry style code (H21):

Coolant exit style code (H22):

Standard (J1):

ISO26623-1

Master insert identification (J42):

SNMG 15 06 12

Data chip provision (J7):

Insert Type:

SN .. 1506 ..
