VDI adaptor – parting blades A2110-V...-P A2110-V25-26R-083-PVDI adaptor – parting blades A2110-V...-P A2110-V25-26R-083-P

VDI adaptor – parting blades A2110-V...-P A2110-V25-26R-083-P

952.00
EX VAT
1,170.96
INC VAT
Walter
VDI adaptor – parting blades A2110-V...-P A2110-V25-26R-083-P
P
H
M
S
K
N
O

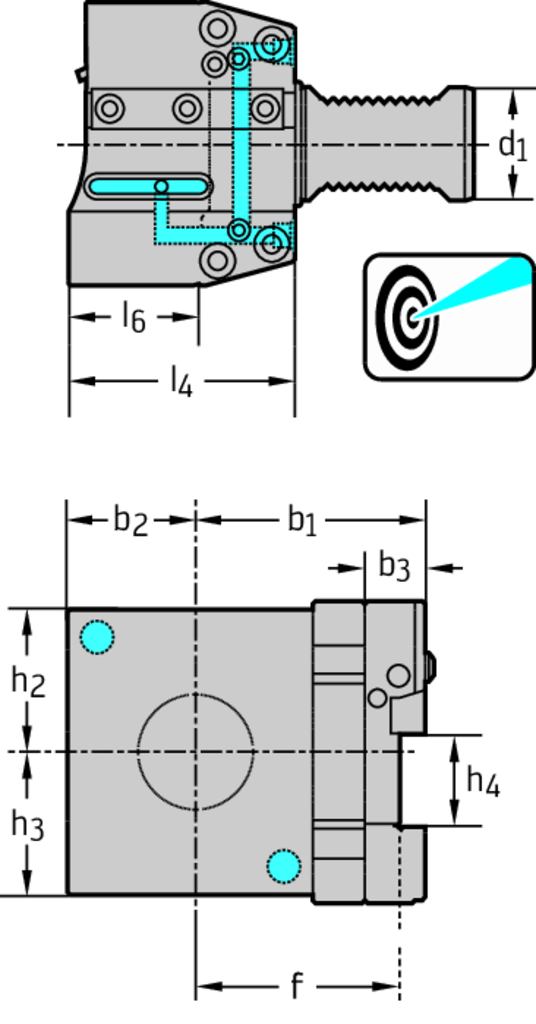

PRODUCT ATTRIBUTES
Tool designation (Designation) A2110-V25-26R-083-P
Shank diameter (d 1) 25
Shank height (h 4) 26 mm
Width (b 1) 43 mm
Radial width (b 2) 30 mm
Functional width (b 3) 17 mm
Functional width (f) 38 mm
Functional length (l 4) 83 mm
Length (l 6) 52 mm
Height (h 2) 37 mm
Height (h 3) 37 mm
weight of item 1,2 kg
Insert Shape A2
DESCRIPTION & FEATURES
VDI adaptor – parting blades A2110-V...-P • metric • Right • 26R • Precision cooling
Article number (J21):
A2110-V25-26R-083-P
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-89
Body length 1 (B1):
52 mm
Protruding length (B3):
80 mm
Overall length (B4):
131 mm
Functional length (B71):
83 mm
Functional height (B72):
21,4 mm
Functional width (B73):
38 mm
Overall height (B81):
74 mm
Overall width (B91):
73 mm
Connection code type machine side (C11):
ZYV
Connection code form at machine side (C12):
01
Connection code unit base machine side (C14):
9
Connection code style machine side (C15):
5
Connection size code machine side (C2):
0250
Connection diameter machine side (C3):
25 mm
Shank length (C4):
48 mm
Connection code type workpiece side (C51):
PMW
Connection code form at workpiece side (C52):
01
Connection code unit base workpiece side (C54):
9
Connection code style workpiece side (C55):
5
Connection size code workpiece side (C6):
0260
Weight of item (D7):
1,2 kg
Cutting direction (E1):
Right
Kappa (E2):
0 °
Coolant entry style code (H21):
1
Coolant exit style code (H22):
1
Data chip provision (J7):
0
