Walter Capto TM Adaptor – vibration damped AC001-C AC001-C6-B16-160Walter Capto TM Adaptor – vibration damped AC001-C AC001-C6-B16-160
Walter Capto TM Adaptor – vibration damped AC001-C AC001-C6-B16-160 Walter Capto TM Adaptor – vibration damped AC001-C AC001-C6-B16-160

Walter Capto TM Adaptor – vibration damped AC001-C AC001-C6-B16-160

€
4,345.00
EX VAT
€
5,344.35
INC VAT
Walter
Walter Capto TM Adaptor – vibration damped AC001-C AC001-C6-B16-160
P
H
M
S
K
N
O
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

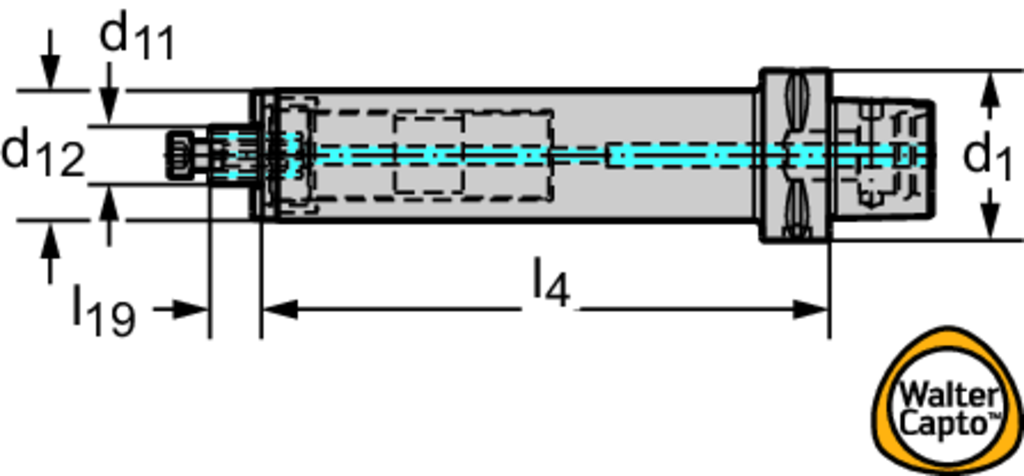

Tool designation (Designation) AC001-C6-B16-160
Connection size code (d 1) C6
connection diameter (d 11) 16 mm
Body diameter (d 12) 38 mm
Functional length (l 4) 160 mm
Clamping length (l 19) 17 mm
weight of item 2,12 kg
Insert Shape AC
DESCRIPTION & FEATURES
Walter Capto TM Adaptor – vibration damped AC001-C • metric • For milling tools with parallel bore according to DIN 138 • With preset vibration damping • d1=C6 • d11=16
Article number (J21):
AC001-C6-B16-160
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-89
Body diameter (A1):
38 mm
Body length 1 (B1):
135 mm
Protruding length (B3):
160 mm
Overall length (B4):
215 mm
Functional length (B71):
160 mm
Connection code type machine side (C11):
CCS
Connection code form at machine side (C12):
03
Connection code unit base machine side (C14):
9
Connection code style machine side (C15):
5
Connection size code machine side (C2):
0630
Connection diameter machine side (C3):
63 mm
Shank length (C4):
38 mm
Connection code type workpiece side (C51):
FDA
Connection code form at workpiece side (C52):
12
Connection code unit base workpiece side (C54):
1
Connection code style workpiece side (C55):
0
Connection size code workpiece side (C6):
0160
Connection diameter min (C71):
16 mm
Rotational speed maximum (D6):
8000 1/min
Weight of item (D7):
2,12 kg
Kappa (E2):
0 °
Coolant entry style code (H21):
1
Coolant exit style code (H22):
1
Standard (J1):
ISO26623-1
Data chip provision (J7):
0
