Walter Capto TM master A100M.8.63.045.32.C6Walter Capto TM master A100M.8.63.045.32.C6
Walter Capto TM master A100M.8.63.045.32.C6 Walter Capto TM master A100M.8.63.045.32.C6

Walter Capto TM master A100M.8.63.045.32.C6

€
440.00
EX VAT
€
541.20
INC VAT
Walter
Walter Capto TM master A100M.8.63.045.32.C6
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

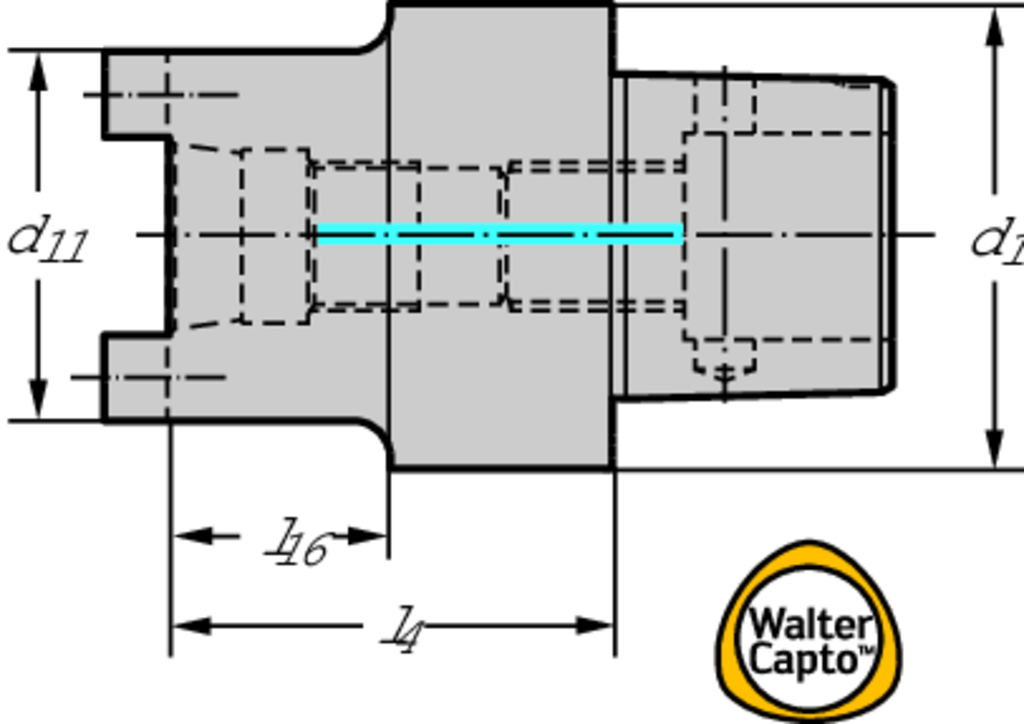

Tool designation (Designation) A100M.8.63.045.32.C6
Connection size code (d 1) C6
Connection diameter (d 11) NCT 32
Functional length (l 4) 45 mm
Useable length (l 16) 20 mm
weight of item 0,96 kg
Insert Shape A1
DESCRIPTION & FEATURES
Walter Capto TM master A100M.8 • metric • Modular NCT adaptor • ISO 26623 • d1=C6 • d11=32
Article number (J21):
A100M.8.63.045.32.C6
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-89
Body diameter (A1):
32 mm
Body length 1 (B1):
20 mm
Protruding length (B3):
45 mm
Overall length (B4):
83 mm
Functional length (B71):
45 mm
Connection code type machine side (C11):
CCS
Connection code form at machine side (C12):
01
Connection code unit base machine side (C14):
9
Connection code style machine side (C15):
5
Connection size code machine side (C2):
0630
Connection diameter machine side (C3):
63 mm
Shank length (C4):
38 mm
Connection code type workpiece side (C51):
NCT
Connection code form at workpiece side (C52):
01
Connection code unit base workpiece side (C54):
9
Connection code style workpiece side (C55):
5
Connection size code workpiece side (C6):
0320
Rotational speed maximum (D6):
30000 1/min
Weight of item (D7):
0,96 kg
Kappa (E2):
0 °
Coolant entry style code (H21):
1
Coolant exit style code (H22):
1
Standard (J1):
DIN 4000-89 KENNZAHL
Standard letter to the standard number (J11):
C
Data chip provision (J7):
0
