Weldon shank adaptor A170M A170M.0.80.085.32Weldon shank adaptor A170M A170M.0.80.085.32
Weldon shank adaptor A170M A170M.0.80.085.32 Weldon shank adaptor A170M A170M.0.80.085.32

Weldon shank adaptor A170M A170M.0.80.085.32

€
340.00
EX VAT
€
418.20
INC VAT
Walter
Weldon shank adaptor A170M A170M.0.80.085.32
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

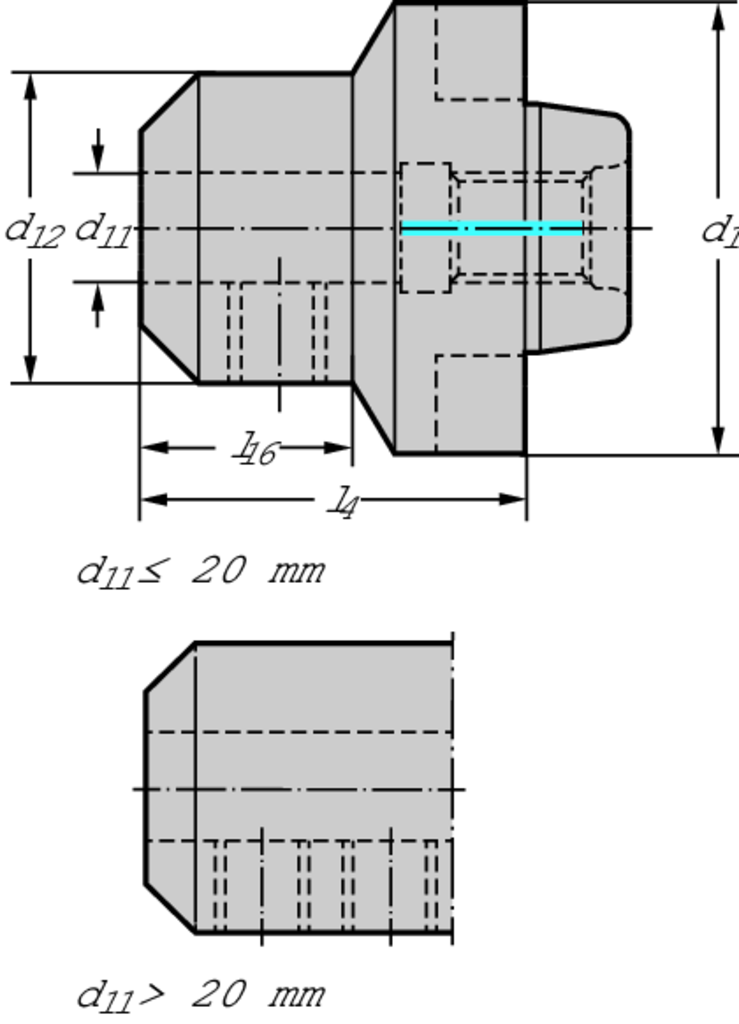

Tool designation (Designation) A170M.0.80.085.32
Connection size code (d 1) NCT 80
Connection diameter (d 11) 32 mm
Body diameter (d 12) 72 mm
functional length (l 4) 85 mm
Useable length (l 16) 65 mm
weight of item 2,43 kg
Insert Shape A1
DESCRIPTION & FEATURES
Weldon shank adaptor A170M • metric • For tools with shank in accordance with DIN 1835 Form B/DIN 6535-HB • d1=80 • d11=32
Article number (J21):
A170M.0.80.085.32
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-89
Body diameter (A1):
72 mm
Flange diameter (A4):
80 mm
Body length 1 (B1):
65 mm
Protruding length (B3):
85 mm
Overall length (B4):
103 mm
Functional length (B71):
85 mm
Connection code type machine side (C11):
NCT
Connection code form at machine side (C12):
01
Connection code unit base machine side (C14):
9
Connection code style machine side (C15):
5
Connection size code machine side (C2):
0800
Connection diameter machine side (C3):
80 mm
Shank length (C4):
18 mm
Connection code type workpiece side (C51):
ZYL
Connection code form at workpiece side (C52):
10
Connection code unit base workpiece side (C54):
1
Connection code style workpiece side (C55):
5
Connection size code workpiece side (C6):
0320
Connection diameter min (C71):
32 mm
Rotational speed maximum (D6):
30000 1/min
Weight of item (D7):
2,429 kg
Kappa (E2):
0 °
Coolant entry style code (H21):
1
Coolant exit style code (H22):
1
Data chip provision (J7):
0
