Wendelnovex ® inserts P2352-1R WKP35S

€

18.62

EX VAT

€

22.90

INC VAT

Walter

Wendelnovex ® inserts P2352-1R WKP35S

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

Tool designation (Designation) P2352-1R WKP35S

Indexable insert tolerance class (Tolerance class) A

Number of cutting edges (Number of cutting edges) 6

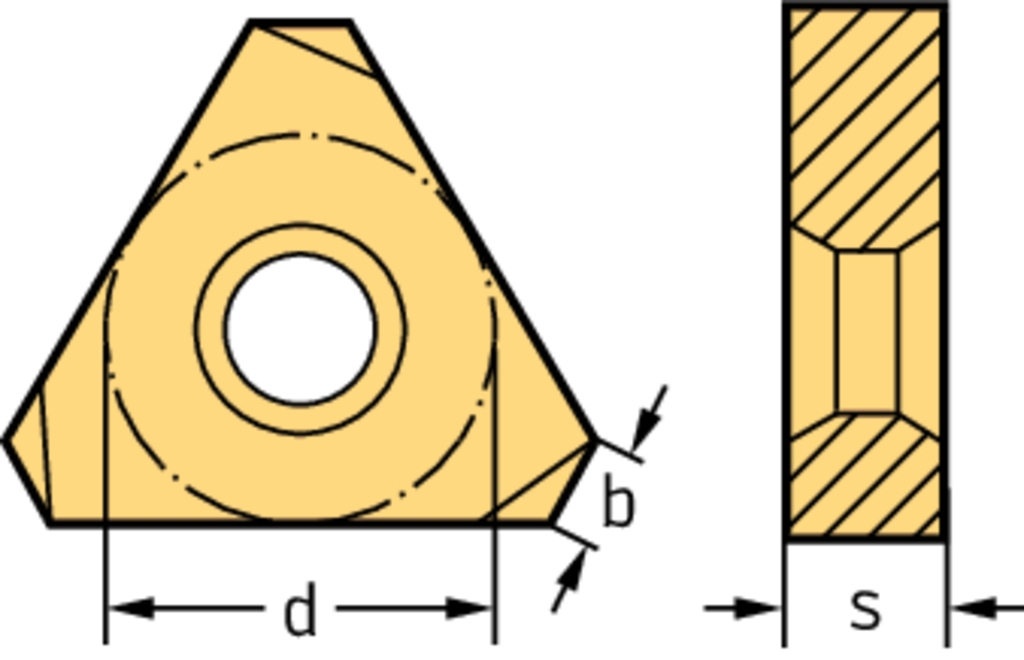

Diameter of inscribed circle (d) 15 mm

Insert thickness (s) 4,5 mm

Wiper cutting edge length (b) 1,1 mm

Insert Shape P2

DESCRIPTION & FEATURES

Wendelnovex ® inserts P2352 ...-A57 • clearance angle major=0° • WKP35S • Tigertec Silver • wiper edge length=1,1mm

Article number (J21):

P2352-1R WKP35S

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-76

Tool style code (BLD):

Insert included angle (A1):

60 °

Clearance angle major (A2):

0 °

Inscribed circle diameter (B3):

15 mm

Insert thickness (C1):

4,5 mm

Wiper edge length (D6):

1,1 mm

Weight of item (D75):

0,014 kg

Cutting edge condition code (E41):

Chip breaker manufacturers designation (E9):

A57

Insert hand (F1):

Insert index count (F2):

Tolerance class insert (G1):

Insert thickness total (G4):

4,5 mm

Insert mounting style code (G5):

Fixing hole diameter (G6):

5,5 mm

Coolant supply property (H2):

Grade manufacturer's designation (H3):

WKP35S

Coating (H5):

TiCN+Al2O3+(TiCN)

Tipped cutting edge code (H6):
