Tool designation (Designation) GX09-2E300N03-UF4 WSM43S

Insert width (s) 3 mm

Corner radius (r) 0,3 mm

Cutting edge length (l) 9 mm

Feed per revolution (f) 0,1 - 0,2 mm

Depth of cut (a p) 0,4 - 1,5 mm

Tolerance cutting width (S Tol) ±0,05 mm

Length tolerance (l Tol) ±0,15 mm

Insert Shape GX

P

H

M

S

K

N

O

Tool designation (Designation) GX09-2E300N03-UF4 WSM43S

Insert width (s) 3 mm

Corner radius (r) 0,3 mm

Cutting edge length (l) 9 mm

Feed per revolution (f) 0,1 - 0,2 mm

Depth of cut (a p) 0,4 - 1,5 mm

Tolerance cutting width (S Tol) ±0,05 mm

Length tolerance (l Tol) ±0,15 mm

Insert Shape GX

Grooving and recessing – cutting inserts GX09-2E300N03-UF4 WSM43S

Walter

€18.69

Buy Now

P

H

M

S

K

N

O

Tool designation (Designation) LNMU120608-F57T WSP45G

Indexable insert tolerance class (Tolerance class) M

Number of cutting edges (Number of cutting edges) 4

Indexable insert width (l 2) 13,9 mm

Cutting edge length (l) 12 mm

Insert thickness (s) 6,5 mm

Corner radius (r) 0,8 mm

Insert Shape LN

P

H

M

S

K

N

O

Tool designation (Designation) LNMU120608-F57T WSP45G

Indexable insert tolerance class (Tolerance class) M

Number of cutting edges (Number of cutting edges) 4

Indexable insert width (l 2) 13,9 mm

Cutting edge length (l) 12 mm

Insert thickness (s) 6,5 mm

Corner radius (r) 0,8 mm

Insert Shape LN

Tangential rhombic LNMU120608-F57T WSP45G

Walter

€24.00

Buy Now

P

H

M

S

K

N

O

Tool designation (Designation) P3204-D15.87 WSP46

Indexable insert tolerance class (Tolerance class) H

Number of cutting edges (Number of cutting edges) 2

Max. cutting edge diameter tolerance (D c -0,03) 15.88 mm

Insert thickness (s) 3 mm

Overall length (l 1) 6 mm

Shank diameter (d 1) 5 mm

Insert Shape P3

P

H

M

S

K

N

O

Tool designation (Designation) P3204-D15.87 WSP46

Indexable insert tolerance class (Tolerance class) H

Number of cutting edges (Number of cutting edges) 2

Max. cutting edge diameter tolerance (D c -0,03) 15.88 mm

Insert thickness (s) 3 mm

Overall length (l 1) 6 mm

Shank diameter (d 1) 5 mm

Insert Shape P3

Profile milling cutter inserts P3204-D15.87 WSP46

Walter

€40.25

Buy Now

P

H

M

S

K

N

O

Tool designation (Designation) TCGT110202-FN2 WNN10

Cutting edge length (l) 11 mm

Corner radius (r) 0,2 mm

Feed per revolution (f) 0,05 - 0,12 mm

Depth of cut (a p) 0,2 - 2 mm

Insert Shape TC

P

H

M

S

K

N

O

Tool designation (Designation) TCGT110202-FN2 WNN10

Cutting edge length (l) 11 mm

Corner radius (r) 0,2 mm

Feed per revolution (f) 0,05 - 0,12 mm

Depth of cut (a p) 0,2 - 2 mm

Insert Shape TC

Positive triangular 60° TCGT110202-FN2 WNN10

Walter

€9.70

Buy Now

P

H

M

S

K

N

O

Tool designation (Designation) ADMT120430L-F56 WSP45G

Indexable insert tolerance class (Tolerance class) M

Number of cutting edges (Number of cutting edges) 2

Indexable insert width (l 2) 8,4 mm

Cutting edge length (l) 13,6 mm

Insert thickness (s) 4,76 mm

Clearance angle major (α) 15 Deg

Minor clearance angle (α 2) 20 Deg

Corner radius (r) 3 mm

Wiper cutting edge length (b) 0,8 mm

Insert Shape AD

P

H

M

S

K

N

O

Tool designation (Designation) ADMT120430L-F56 WSP45G

Indexable insert tolerance class (Tolerance class) M

Number of cutting edges (Number of cutting edges) 2

Indexable insert width (l 2) 8,4 mm

Cutting edge length (l) 13,6 mm

Insert thickness (s) 4,76 mm

Clearance angle major (α) 15 Deg

Minor clearance angle (α 2) 20 Deg

Corner radius (r) 3 mm

Wiper cutting edge length (b) 0,8 mm

Insert Shape AD

Positive rhombic ADMT120430L-F56 WSP45G

Walter

€15.45

Buy Now

P

H

M

S

K

N

O

Tool designation (Designation) M5460-020-TC10-02-10

Cutting edge diameter (D c) 20 mm

Corner radius (r) 10 mm

connection diameter (d 1) 18,5 mm

Maximum projection length (l 4) 30 mm

Number of teeth (Z) 2

weight of item 0,05 kg

Number of indexable inserts (No. of indexable inserts) 1

Insert Shape M5

P

H

M

S

K

N

O

Tool designation (Designation) M5460-020-TC10-02-10

Cutting edge diameter (D c) 20 mm

Corner radius (r) 10 mm

connection diameter (d 1) 18,5 mm

Maximum projection length (l 4) 30 mm

Number of teeth (Z) 2

weight of item 0,05 kg

Number of indexable inserts (No. of indexable inserts) 1

Insert Shape M5

Profile milling cutters M5460-020-TC10-02-10

Walter

€210.00

Buy Now

P

H

M

S

K

N

O

Tool designation (Designation) NTS-IL-16 2.00ISO WXP2

Pitch (Pitch (P)) 2 mm

Cutting edge length (l) 16 mm

Diameter of inscribed circle (d) 9,525 mm

Actual thread height (h min) 1,15 mm

Profile spacing ex (X) 1 mm

Profile spacing ey (Y) 1,3 mm

Insert Shape NT

P

H

M

S

K

N

O

Tool designation (Designation) NTS-IL-16 2.00ISO WXP2

Pitch (Pitch (P)) 2 mm

Cutting edge length (l) 16 mm

Diameter of inscribed circle (d) 9,525 mm

Actual thread height (h min) 1,15 mm

Profile spacing ex (X) 1 mm

Profile spacing ey (Y) 1,3 mm

Insert Shape NT

Internal thread turning inserts – full profile, ISO metric 60° NTS NTS-IL-16 2.00ISO WXP20

Walter

€20.92

Buy Now

P

H

M

S

K

N

O

Tool designation (Designation) A16T-SCLCL3

Minimum hole diameter (D min) 1,201 inch

Boring bar diameter d (d 1) 1 inch

Functional width (f) 0,64 inch

Height (h) 0,906 inch

Overall length (l 1) 12 inch

Orthogonal rake angle (γ) 0 Deg

Inclination angle (λ s) -3,8 Deg

Insert Shape A.

P

H

M

S

K

N

O

Tool designation (Designation) A16T-SCLCL3

Minimum hole diameter (D min) 1,201 inch

Boring bar diameter d (d 1) 1 inch

Functional width (f) 0,64 inch

Height (h) 0,906 inch

Overall length (l 1) 12 inch

Orthogonal rake angle (γ) 0 Deg

Inclination angle (λ s) -3,8 Deg

Insert Shape A.

Boring bar – Screw clamping A... A16T-SCLCL3

Walter

€98.40

Buy Now

P

H

M

S

K

N

O

Tool designation (Designation) DNMA150612-RK7 WKK10S

Corner radius (r) 1,2 mm

Feed per revolution (f) 0,25 - 0,45 mm

Depth of cut (a p) 1,2 - 5 mm

Insert Shape DN

P

H

M

S

K

N

O

Tool designation (Designation) DNMA150612-RK7 WKK10S

Corner radius (r) 1,2 mm

Feed per revolution (f) 0,25 - 0,45 mm

Depth of cut (a p) 1,2 - 5 mm

Insert Shape DN

Negative rhombic 55° DNMA150612-RK7 WKK10S

Walter

€11.38

Buy Now

P

H

M

S

K

N

O

Tool designation (Designation) G1011-C4L-5T21GX24-P

Insert width (s) 5 mm

Maximum cutting depth (T max) 21 mm

Connection size code (d 1) C4

Functional width (f 1) 24,5 mm

Maximum projection length (l 4) 65 mm

Body width (s 1) 4,2 mm

Insert Shape G1

P

H

M

S

K

N

O

Tool designation (Designation) G1011-C4L-5T21GX24-P

Insert width (s) 5 mm

Maximum cutting depth (T max) 21 mm

Connection size code (d 1) C4

Functional width (f 1) 24,5 mm

Maximum projection length (l 4) 65 mm

Body width (s 1) 4,2 mm

Insert Shape G1

Groove turning – Radial grooving G1011-C...-P G1011-C4L-5T21GX24-P

Walter

€450.00

Buy Now

P

H

M

S

K

N

O

Tool designation (Designation) A16T-DTFNR3

Minimum hole diameter (D min) 1,201 inch

Boring bar diameter d (d 1) 1 inch

Functional width (f) 0,64 inch

Height (h) 0,906 inch

Overall length (l 1) 12 inch

Orthogonal rake angle (γ) -6 Deg

Inclination angle (λ s) -12 Deg

Insert Shape A.

P

H

M

S

K

N

O

Tool designation (Designation) A16T-DTFNR3

Minimum hole diameter (D min) 1,201 inch

Boring bar diameter d (d 1) 1 inch

Functional width (f) 0,64 inch

Height (h) 0,906 inch

Overall length (l 1) 12 inch

Orthogonal rake angle (γ) -6 Deg

Inclination angle (λ s) -12 Deg

Insert Shape A.

Boring bar – Rigid clamping A... A16T-DTFNR3

Walter

€215.05

Buy Now

P

H

M

S

K

N

O

Tool designation (Designation) P6005-D20,20R WKK45C

Number of cutting edges (Number of cutting edges) 1

Cutting edge diameter (D c) 20.2 mm

Seat size 20

Hole diameter (d 1) 5 mm

Insert thickness (s) 5,5 mm

Insert Shape P6

P

H

M

S

K

N

O

Tool designation (Designation) P6005-D20,20R WKK45C

Number of cutting edges (Number of cutting edges) 1

Cutting edge diameter (D c) 20.2 mm

Seat size 20

Hole diameter (d 1) 5 mm

Insert thickness (s) 5,5 mm

Insert Shape P6

Exchangeable tip P6005-D20,20R WKK45C

Walter

€96.05

Buy Now

P

H

M

S

K

N

O

Tool designation (Designation) SNMG150612-NRT WSM20S

Corner radius (r) 1,2 mm

Feed per revolution (f) 0,3 - 0,6 mm

Depth of cut (a p) 1 - 7,5 mm

Insert Shape SN

P

H

M

S

K

N

O

Tool designation (Designation) SNMG150612-NRT WSM20S

Corner radius (r) 1,2 mm

Feed per revolution (f) 0,3 - 0,6 mm

Depth of cut (a p) 1 - 7,5 mm

Insert Shape SN

Negative square SNMG150612-NRT WSM20S

Walter

€12.98

Buy Now

P

H

M

S

K

N

O

Tool designation (Designation) MP260-016T02P WDN20

Cutting edge diameter (D c) 16 mm

Corner radius (r) 0.2 mm

Cutting edge length (L c) 15 mm

Overall length (l 1) 48 mm

Functional length (l 4) 30 mm

Shank diameter (d 1) T14 mm

Number of teeth (Z) 2

weight of item 0 kg

Insert Shape MP

P

H

M

S

K

N

O

Tool designation (Designation) MP260-016T02P WDN20

Cutting edge diameter (D c) 16 mm

Corner radius (r) 0.2 mm

Cutting edge length (L c) 15 mm

Overall length (l 1) 48 mm

Functional length (l 4) 30 mm

Shank diameter (d 1) T14 mm

Number of teeth (Z) 2

weight of item 0 kg

Insert Shape MP

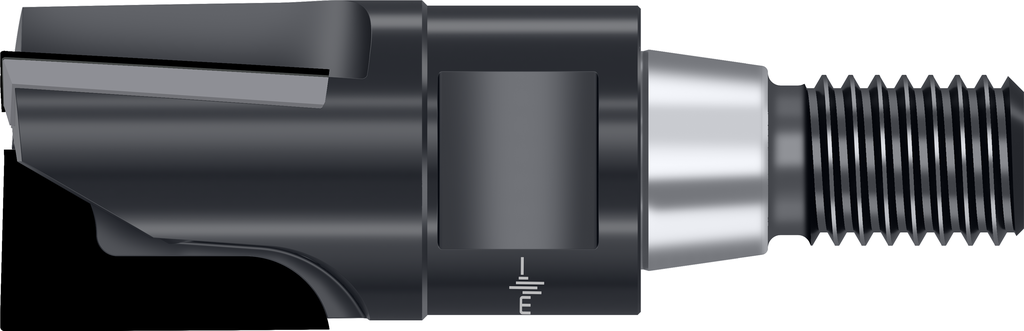

16mm PCD shoulder milling cutters MP260-016T02P WDN20

Walter

€754.00

Buy Now

P

H

M

S

K

N

O

Tool designation (Designation) M5130-040-TC16-07-05

Cutting edge diameter (D c) 40 mm

Connection diameter (d 1) M16 mm

Maximum projection length (l 4) 35 mm

Cutting edge length (L c) 5 mm

Number of teeth (Z) 7

weight of item 0,24 kg

Number of indexable inserts (No. of indexable inserts) 7

Maximum admissable speed (n max [rpm]) 32500

Maximum ramping angle (E) 0,9 Deg

Insert Shape M5

P

H

M

S

K

N

O

Tool designation (Designation) M5130-040-TC16-07-05

Cutting edge diameter (D c) 40 mm

Connection diameter (d 1) M16 mm

Maximum projection length (l 4) 35 mm

Cutting edge length (L c) 5 mm

Number of teeth (Z) 7

weight of item 0,24 kg

Number of indexable inserts (No. of indexable inserts) 7

Maximum admissable speed (n max [rpm]) 32500

Maximum ramping angle (E) 0,9 Deg

Insert Shape M5

Shoulder milling cutters M5130-040-TC16-07-05

Walter

€445.00

Buy Now

P

H

M

S

K

N

O

Tool designation (Designation) SPMW060304-A57 WAK15

Indexable insert tolerance class (Tolerance class) M

Number of cutting edges (Number of cutting edges) 4

Cutting edge length (l) 6,35 mm

Insert thickness (s) 3,18 mm

Clearance angle major (α) 11 Deg

Corner radius (r) 0,4 mm

Insert Shape SP

P

H

M

S

K

N

O

Tool designation (Designation) SPMW060304-A57 WAK15

Indexable insert tolerance class (Tolerance class) M

Number of cutting edges (Number of cutting edges) 4

Cutting edge length (l) 6,35 mm

Insert thickness (s) 3,18 mm

Clearance angle major (α) 11 Deg

Corner radius (r) 0,4 mm

Insert Shape SP

Positive square SPMW060304-A57 WAK15

Walter

€6.30

Buy Now

P

H

M

S

K

N

O

Tool designation (Designation) SDMT1204AZN-D57 WKP25S

Indexable insert tolerance class (Tolerance class) M

Number of cutting edges (Number of cutting edges) 4

Cutting edge length (l) 12,7 mm

Insert thickness (s) 4,76 mm

Clearance angle major (α) 15 Deg

Corner radius (r) 0,3 mm

Wiper cutting edge length (b) 1,4 mm

Insert Shape SD

P

H

M

S

K

N

O

Tool designation (Designation) SDMT1204AZN-D57 WKP25S

Indexable insert tolerance class (Tolerance class) M

Number of cutting edges (Number of cutting edges) 4

Cutting edge length (l) 12,7 mm

Insert thickness (s) 4,76 mm

Clearance angle major (α) 15 Deg

Corner radius (r) 0,3 mm

Wiper cutting edge length (b) 1,4 mm

Insert Shape SD

Positive square SDMT1204AZN-D57 WKP25S

Walter

€10.72

Buy Now

P

H

M

S

K

N

O

Tool designation (Designation) NTS-IR-11 20W WMP32

Pitch (in inches) (Lead (TPI)) 20 inch

Cutting edge length (l) 11 mm

Diameter of inscribed circle (d) 6,35 mm

Actual thread height (h min) 0,81 mm

Profile spacing ex (X) 0,8 mm

Profile spacing ey (Y) 0,9 mm

Insert Shape NT

P

H

M

S

K

N

O

Tool designation (Designation) NTS-IR-11 20W WMP32

Pitch (in inches) (Lead (TPI)) 20 inch

Cutting edge length (l) 11 mm

Diameter of inscribed circle (d) 6,35 mm

Actual thread height (h min) 0,81 mm

Profile spacing ex (X) 0,8 mm

Profile spacing ey (Y) 0,9 mm

Insert Shape NT

Internal thread turning inserts – full profile, Whitworth NTS NTS-IR-11 20W WMP32

Walter

€20.92

Buy Now

P

H

M

S

K

N

O

Tool designation (Designation) M4002-100-B32-07-02

Cutting edge diameter (D c) 77.2 mm

Cutting edge diameter (D a *) 100 mm

Shank diameter (d 1) 32 mm

Functional length (l 4) 60 mm

Cutting edge length (L c) 2 mm

a (a r) 11,4 mm

Number of teeth (Z) 7

weight of item 2,6 kg

Number of indexable inserts (No. of indexable inserts) 7

Insert Shape M4

P

H

M

S

K

N

O

Tool designation (Designation) M4002-100-B32-07-02

Cutting edge diameter (D c) 77.2 mm

Cutting edge diameter (D a *) 100 mm

Shank diameter (d 1) 32 mm

Functional length (l 4) 60 mm

Cutting edge length (L c) 2 mm

a (a r) 11,4 mm

Number of teeth (Z) 7

weight of item 2,6 kg

Number of indexable inserts (No. of indexable inserts) 7

Insert Shape M4

High-feed milling cutter M4002-100-B32-07-02

Walter

€721.00

Buy Now

P

H

M

S

K

N

O

Tool designation (Designation) E12Q-SDUCL07-R

Minimum hole diameter (D min) 18 mm

Boring bar diameter d (d 1) 12 mm

Functional width (f) 11 mm

Overall length (l 1) 180 mm

Orthogonal rake angle (γ) 0 Deg

Inclination angle (λ s) -5,298 Deg

Insert Shape E.

P

H

M

S

K

N

O

Tool designation (Designation) E12Q-SDUCL07-R

Minimum hole diameter (D min) 18 mm

Boring bar diameter d (d 1) 12 mm

Functional width (f) 11 mm

Overall length (l 1) 180 mm

Orthogonal rake angle (γ) 0 Deg

Inclination angle (λ s) -5,298 Deg

Insert Shape E.

Boring bar – Screw clamping E...-SDUC...-R E12Q-SDUCL07-R

Walter

€360.00

Buy Now

P

H

M

S

K

N

O

Tool designation (Designation) BCMT120408R-G55 WKK25S

Indexable insert tolerance class (Tolerance class) M

Number of cutting edges (Number of cutting edges) 2

Indexable insert width (l 2) 7,3 mm

Cutting edge length (l) 13,8 mm

Insert thickness (s) 4,8 mm

Clearance angle major (α) 7 Deg

Minor clearance angle (α 2) 15 Deg

Corner radius (r) 0,8 mm

Wiper cutting edge length (b) 1,3 mm

Insert Shape BC

P

H

M

S

K

N

O

Tool designation (Designation) BCMT120408R-G55 WKK25S

Indexable insert tolerance class (Tolerance class) M

Number of cutting edges (Number of cutting edges) 2

Indexable insert width (l 2) 7,3 mm

Cutting edge length (l) 13,8 mm

Insert thickness (s) 4,8 mm

Clearance angle major (α) 7 Deg

Minor clearance angle (α 2) 15 Deg

Corner radius (r) 0,8 mm

Wiper cutting edge length (b) 1,3 mm

Insert Shape BC

Positive rhombic BCMT120408R-G55 WKK25S

Walter

€15.08

Buy Now

P

H

M

S

K

N

O

Tool designation (Designation) G1011.2525L-5T21GX24

Insert width (s) 5 mm

Maximum cutting depth (T max) 21 mm

Work piece parting diameter maximum (D 2) 80 mm

Shank height (h = h 1) 25 mm

Shank width (b) 25 mm

Functional width (f 1) 22,9 mm

Overall length (l 1) 150 mm

Maximum projection length (l 4) 40 mm

Body width (s 1) 4,2 mm

Insert Shape G1

P

H

M

S

K

N

O

Tool designation (Designation) G1011.2525L-5T21GX24

Insert width (s) 5 mm

Maximum cutting depth (T max) 21 mm

Work piece parting diameter maximum (D 2) 80 mm

Shank height (h = h 1) 25 mm

Shank width (b) 25 mm

Functional width (f 1) 22,9 mm

Overall length (l 1) 150 mm

Maximum projection length (l 4) 40 mm

Body width (s 1) 4,2 mm

Insert Shape G1

Shank tool – Radial grooving G1011.2525L-5T21GX24

Walter

€154.00

Buy Now

P

H

M

S

K

N

O

Tool designation (Designation) M4258-080-C8-03-116-M

Cutting edge diameter (D c) 80 mm

connection diameter (d 1) C8 mm

Maximum projection length (l 4) 150 mm

Useable length (l 16) 150 mm

Cutting edge length (L c) 118 mm

Number of teeth (Z) 3

weight of item 3,9 kg

Number of indexable inserts (No. of indexable inserts) 33

Insert Shape M4

P

H

M

S

K

N

O

Tool designation (Designation) M4258-080-C8-03-116-M

Cutting edge diameter (D c) 80 mm

connection diameter (d 1) C8 mm

Maximum projection length (l 4) 150 mm

Useable length (l 16) 150 mm

Cutting edge length (L c) 118 mm

Number of teeth (Z) 3

weight of item 3,9 kg

Number of indexable inserts (No. of indexable inserts) 33

Insert Shape M4

Helicalmilling cutters M4258-080-C8-03-116-M

Walter

€3432.00

Buy Now

P

H

M

S

K

N

O

Tool designation (Designation) D4120-03-24.50F25-P44

Cutting edge diameter (D c) 24.5 mm

Cutting edge length (L c) 73,5 mm

Maximum projection length (l 4) 99 mm

Clamping length (l 5) 56 mm

Connection diameter (d 1) 25 mm

Flange diameter (d 4) 35 mm

weight of item 0,52 kg

Number of indexable inserts (No. of indexable inserts) 1

Insert Shape D4

P

H

M

S

K

N

O

Tool designation (Designation) D4120-03-24.50F25-P44

Cutting edge diameter (D c) 24.5 mm

Cutting edge length (L c) 73,5 mm

Maximum projection length (l 4) 99 mm

Clamping length (l 5) 56 mm

Connection diameter (d 1) 25 mm

Flange diameter (d 4) 35 mm

weight of item 0,52 kg

Number of indexable inserts (No. of indexable inserts) 1

Insert Shape D4

Indexable insert drills D4120-03-24.50F25-P44

Walter

€442.00

Buy Now

P

H

M

S

K

N

O

Tool designation (Designation) PVHBR2020K16

Shank height (h = h 1) 20 mm

Shank width (b) 20 mm

Functional width (f) 25 mm

Functional length (l 1) 125 mm

Maximum projection length (l 4) 28 mm

Orthogonal rake angle (γ) 0 Deg

Inclination angle (λ s) 0 Deg

P

H

M

S

K

N

O

Tool designation (Designation) PVHBR2020K16

Shank height (h = h 1) 20 mm

Shank width (b) 20 mm

Functional width (f) 25 mm

Functional length (l 1) 125 mm

Maximum projection length (l 4) 28 mm

Orthogonal rake angle (γ) 0 Deg

Inclination angle (λ s) 0 Deg

Shank tool – Lever clamping PVHBR2020K16

Walter

€96.50

Buy Now

P

H

M

S

K

N

O

Tool designation (Designation) CCGT09T302-MN2 WN10

Cutting edge length (l) 9,67 mm

Corner radius (r) 0,2 mm

Feed per revolution (f) 0,05 - 0,12 mm

Depth of cut (a p) 0,5 - 2 mm

P

H

M

S

K

N

O

Tool designation (Designation) CCGT09T302-MN2 WN10

Cutting edge length (l) 9,67 mm

Corner radius (r) 0,2 mm

Feed per revolution (f) 0,05 - 0,12 mm

Depth of cut (a p) 0,5 - 2 mm

Positive rhombic 80° CCGT09T302-MN2 WN10

Walter

€9.00

Buy Now

P

H

M

S

K

N

O

Tool designation (Designation) OPHN0504ZZN-A57 WKP25S

Indexable insert tolerance class (Tolerance class) H

Number of cutting edges (Number of cutting edges) 8

Cutting edge length (l) 12,7 mm

Diameter of inscribed circle (d) 12,7 mm

Insert thickness (s) 4,76 mm

Clearance angle major (α) 11 Deg

Corner radius (r) 0,4 mm

Wiper cutting edge length (b) 1,2 mm

P

H

M

S

K

N

O

Tool designation (Designation) OPHN0504ZZN-A57 WKP25S

Indexable insert tolerance class (Tolerance class) H

Number of cutting edges (Number of cutting edges) 8

Cutting edge length (l) 12,7 mm

Diameter of inscribed circle (d) 12,7 mm

Insert thickness (s) 4,76 mm

Clearance angle major (α) 11 Deg

Corner radius (r) 0,4 mm

Wiper cutting edge length (b) 1,2 mm

Positive octagonal OPHN0504ZZN-A57 WKP25S

Walter

€13.73

Buy Now

P

H

M

S

K

N

O

Tool designation (Designation) D4140-05-15.00F16-B

Cutting edge diameter (D c) 15 mm

Cutting edge length (L c) 78 mm

Maximum projection length (l 4) 110 mm

Shank length (l 5) 48 mm

connection diameter (d 1) 16 mm

Flange diameter (d 4) 20 mm

weight of item 0,18 kg

Number of indexable inserts (No. of indexable inserts) 1

Seat size 14

P

H

M

S

K

N

O

Tool designation (Designation) D4140-05-15.00F16-B

Cutting edge diameter (D c) 15 mm

Cutting edge length (L c) 78 mm

Maximum projection length (l 4) 110 mm

Shank length (l 5) 48 mm

connection diameter (d 1) 16 mm

Flange diameter (d 4) 20 mm

weight of item 0,18 kg

Number of indexable inserts (No. of indexable inserts) 1

Seat size 14

Exchangeable-tip drills D4140-05-15.00F16-B

Walter

€333.00

Buy Now
